Cubus_image_test

Applications

Servohydraulic testing systems (single axis/multi axis/torsion)

Special feature

Fatigue strength and durability

The versatile and user friendly software platform

For fatigue and durability tests, the use of servohydraulic testing systems is preferred. The performance of these systems is determined to a large degree by the measurement and control electronics used, together with the associated testing software.

For this purpose, ZwickRoell offers the Cubus testing software. They are ideally suited for new testing systems, for retrofitting existing servo-hydraulic testing systems and for multi-axis applications.<br/> Impressive features of the Cubus software platform include outstanding versatility and an extremely user-friendly operating concept, especially important when faced with frequently changing testing requirements. From configuration of the test bench to routine cyclic tests to advanced applications - there is a Cubus test program to suit them all. QanTiM^® iteration software is optionally available for simulation of actual service loads.

Modernization of test portal at TU Berlin

ZwickRoell modernizes test portal at TU Berlin with the Control Cube servo controller and Cubus testing software

Modernisation of the test portal at the TU Berlin

Cubus applications

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

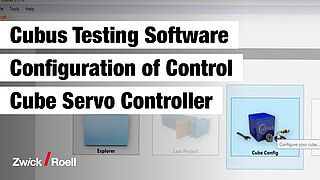

Cubus Testing Software – Configuration of Control Cube servo controller

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Cubus Testing Software – Cycle Pro/Constant amplitude fatigue test

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Cubus Testing Software – Block Program/graphical block editor

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Cubus Testing Software – PID settings

Advantages & features

Short training/familiarization time

Simple, intuitive and well-structured user interface shortens familiarization times

System configuration

Flexible, modular design allows straightforward system configuration to accommodate testing requirements - whether simple or complex

Software packages

For a wide variety of customer-specific testing situations, you can choose between the Cubus^light basic software and the Cubus testing software.

Special package for simulations

QuanTiM^® software package for simulation of actual operating loads

Basic software modules

Setup
configuration of test rig and setup of all control parameters and settings
Data
data acquisition, data display and data export
Test
determination and performance of test

This organized structure allows any function to be found quickly and easily.

Test options and expansion options

For more information on Cubus test options

Block programs
Dura fatigue tests
External tests
Cyclic Pro
Ramps

and expansion options

General functions
Measurement value logging and display
Control
Multi-channel applications
Procedures

please take a look at our Product Information document.

Cube and Cubus Product Information

Contract testing_1

Do you have any questions regarding our products?

Please feel free to contact our product experts.
We look forward to discussing your needs.
