Testing Machines for Cruciform Tests

Download
Industries
  • Plastics
  • Metals
  • Medical
  • Paper
  • Academia
Test load
  • 2 kN - 150 kN
Type of test
  • Biaxial tensile test
Special feature
  • Determination of stress values at the intersection point of the specimen

Description Video Advantages & features Technical data

Systems for Biaxial Tensile Tests

A unique feature of materials testing is the biaxial tensile test, or two-axis tensile test, which is used to determine the deformation properties of the material. It is primarily employed in research and development, as it allows defined stress values to be set and investigated at the intersection point of the specimen.

2 kN Materials Testing Machine for Biaxial Tensile Tests

2 kN materials testing machine for tensile tests on cruciform specimens

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Advantages & Features

Description
Advantages & Features
Strain Measurement
Types of Control

Description

Biaxial testing machines are available from ZwickRoell in both standardized and customized versions.

  • Biaxial, low-load testing machine with four high-resolution linear drives horizontally arranged for uniaxial and biaxial testing of natural and artificial elastic tissues up to a maximum test load of 2 kN.
  • Biaxial testing machine with electromechanical testing actuators (horizontally oriented) for uniaxial or biaxial tensile tests on films/foils, paper, elastomers and biological materials up to a maximum test load of 2 kN
  • Biaxial testing machine with electromechanical testing actuators (vertically oriented) for uniaxial or biaxial tensile tests on sheet metals, elastomers, plastics and components up to a maximum test load of 50 kN
  • Biaxial testing machines with table-top testing machines (horizontally oriented) for uniaxial or biaxial tensile tests on sheet metals, elastomers, plastics and components up to a maximum test load of 150 kN
  • Biaxial testing machines (vertically oriented) for uniaxial or biaxial tensile tests on sheet metals up to a maximum test load of 250 kN

Advantages & Features

  • Employs proven ZwickRoell standard components
  • Convenient working height
  • Unobstructed view of specimen
  • videoXtens employed for strain measurement and control
  • testControl II measurement and control electronics
  • Force or displacement control with smooth switching between modes
  • testXpert III Master Test Program with graphical multiaxial sequence editor for 4 test axes for generation of customer's own test sequences
  • Low maintenance costs combined with high life-expectancy
  • Safety housing in compliance with CE Machinery Directive according to application

Strain Measurement

Strain measurement and strain control are usually on an optical basis via the proven videoXtens extensometer.

Learn more about the videoXtens

Types of Control

Depending on the requirements, three types of control are available:

  • Master-slave operation with “electric shaft”
  • Strain control
  • Strain control with additional mid-point control

Technical Overview

Fmax25kN
Item No.0046283003022
Load frame dimensions
Height (max.)2000120001mm
Width (max.)2100mm
Depth (max.)21002300mm
Width, max.2300
Working height11001000mm
Base plate dimensions, Ø12001200 x 1200mm
  1. incl. videoXtens mounting
Fmax50kN
Item No.069104
Load frame dimensions
Height, max.2700mm
Width, max.2600mm
Depth, max.420mm
Working height1350mm
Depth of horizontal base of frame880mm
Fmax2050100100150kN
Item No.05997209158030000243000021052685
Load frame dimensions
Height, max.26002600260026002600mm
Width, max.32003500360036003900mm
Depth, max.32003500360036003900mm
Working height14001400140014001400mm
Speed, max.10006007501500900mm/min

Do you have any questions regarding our products?

Please feel free to contact our product experts.
We look forward to discussing your needs.



Contact us

Related Products and Accessories

Electromechanical Servo Testing Actuators
Test load
  • 1 kN - 100 kN
Type of test
  • Tensile
  • Compression
  • Components
  • Fatigue
Applications
  • Flexible range of application
  • High test speed
Industries
  • Universal
  • Components
To the product
Biaxial Testing Machine for Biomaterials
Industries
  • Medical
Test load
  • 50 N - 200 N
Type of test
  • Uniaxial
  • Biaxial
Special feature
  • Characterization of soft tissues in temperature-regulated fluid mediums through optical strain measurement
To the product

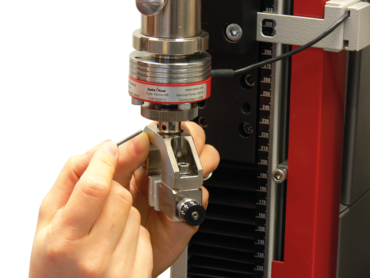

For small forces Screw grips up to 500 N
Material
  • Metals
  • Plastics
  • Textile
  • Paper
Test load
  • 20 N - 500 N
Specimen shape
  • Round specimens
  • Flat specimens
  • Asymmetrical specimens
  • Glued specimens
Type of test
  • Tensile
  • Compression
  • Alternating load
To the product

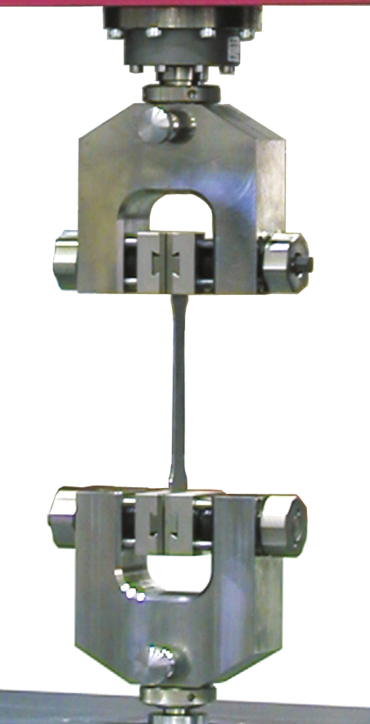

For large forces Screw grips up to 50 kN
