A testing actuator serves as a flexible testing machine

The electromechanical servo-testing actuators can be universally used as flexible testing machines. They are ideal for tensile tests and compression tests and can be variably integrated in different test fixtures. Applications range from materials and components testing to tests performed on end products. In addition, they can be used to test production steps (e.g. joining, press-fitting and assembly) or to perform fatigue tests with large strokes.

Conveyor belt testing

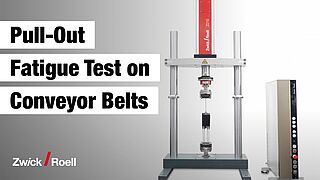

The fatigue life of conveyor belts is tested using dynamic pull-out tests.

For the test, a 10 kN electromechanical servo-testing actuator was mounted on a two-column load frame.

Advantages & Features

Description

The electromechanical servo testing actuator is available in six versions: 1, 2, 5, 10, 20 and 30 kN.
High test speeds up to 30 m/min guarantee high efficiency.
Operating modes—force control and position control—can be switched seamlessly.
A large range of standard modules such as load cells, test fixtures, testing software, and testControl standard electronics is available for various testing situations.
Accessory cards and interfaces are available for easy integration in production lines.

Advantages & Features

Advantages and features

Flexible usage:

Variable mounting via front or rear flange or via trunion mount
measurement and control electronics testControl II in seperate casing and therewith optional positionable (Optional in IP54 casing)
Flexible programming of test sequences due to versatile interfaces
Ideally usage for clean room areas

Maintenance

Easy to install and maintain:

Installation possible without additional infrastructure (like e.g. hydraulic pumps or pneumatic connections)
Low maintenance costs and long lifetime

Accessories

Large variety of standard modules:

Easy mounting of ZwickRoell load cells and tooling
Operation via standard PC and testXpert III software
Proven digital drive technology controlled by ZwickRoell standard electronics

Applications

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Conveyor belt testing

Dynamic pull-out test

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

Testing of a steering column

Fatigue test

Additional flexible testing machine applications

Testing actuator in use as a portal testing machine

Portal solutions with electromechanical testing actuators

The portals have a modular construction, which allows them to be configured easily for testing requirements. The T-slotted base platform, portal, and electromechanical servo testing actuator are all available in various sizes and shapes. The position of the testing actuator in the X-, Y-, and Z-axis can be adjusted manually or via an electric motor.

High cycle fatigue test with an electromechanical testing actuator 5 kN

Test bench for high cycle fatigue testing of foams

The test bench for high cycle fatigue testing enables determination of material fatigue, indentation hardness, and compression stress values of flexible foam materials.

Electromechanical testing actuator as horizontal test axis

Horizontal test axis on testing machines

Mounting the electromechanical servo testing actuator on a table top testing machine enables side loading of shock absorbers. The test height of the actuator can be adjusted.

2 kN testing actuator used as a flexible testing machine

Use in a test frame

For tensile and compression applications, the electromechanical servo testing actuators can be used as a flexible testing machine.

Mounting of an electromechanical testing actuator on a Harley

Variable mounting options

The electromechanical servo testing actuator can be used in a variety of ways.

Technical overview

Series I	EZ001	EZ001	EZ002	EZ002	EZ005
Electromechanical servo testing actuator
Fmax (tensile/compression)	1	1	2	2	5	kN
Test speed	0,001...7500	0,001...30000	0,001...7500	0,001...15000	0,001...5000	mm/min
Travel resolution	2.38	19.07	2.38	9.54	3.18	nm
Positioning repetition accuracy	±2.5	± 6	± 2.5	± 6	±2.5	μm
L1 – Length	547	547	547	547	547	mm
L2 – Width	120	120	120	120	120	mm
L3 – Depth	270	282	270	282	282	mm
L4 – Length including piston rod	660	670	660	660	660	mm
L5 – Length including motor	275	329	275	329	329	mm
Total weight, approx.	22	26	22	26	26	kg
Piston stroke, max.
- Standard	200	180	200	200	200	mm
- Alternative	400	380	400	400	400	mm
Ambient temperature	+10 to +35	+10 to +35	+10 to +35	+10 to +35	+10 to +35	°C
Air humidity	20 – 90	20 – 90	20 – 90	20 – 90	20 – 90	%
testControl II measurement and control electronics
Measurement range	≤165	≤165	≤165	≤165	≤165	%
Recording rate, internal	400	400	400	400	400	kHz
Measurement value transmission rate to PC	500	500	500	500	500	Hz
Adjustable (optional)	2000	2000	2000	2000	2000	Hz
Electrical connection	230	230	230	230	230	V, 1 Ph/N/PE
Power consumption, max.	2200	2200	2200	2200	2200	VA
Power frequency	50/60	50/60	50/60	50/60	50/60	Hz
Item No.
Standard piston stroke	1023356	1023358	1023360	1023362	1023364
Alternative piston stroke¹	1023357	1023359	1023361	1023363	1023365

Length and weight are different with alternative piston stroke

Series II	EZ005	EZ010	EZ010	EZ020	EZ030
Electromechanical servo testing actuator
Fmax (tensile/compression)	5	10	10	20	30	kN
Test speed, max.	30000	3300	15000	7500	6000	mm/min
Travel resolution	9.54	2.1	4.77	2.38	2.19	nm
Positioning repeat accuracy	±8	±8	±8	±8	±8	μm
L1 – Length	669	669	669	669	669	mm
L2 – Width	180	180	180	180	180	mm
L3 – Depth	385	385	385	385	385	mm
L4 – Length including piston rod	837	837	837	837	837	mm
L5 – Length including motor	385	340	385	385	385	mm
Total weight, approx.	72	65	72	72	72	kg
Piston stroke, max.
- Standard	200	200	200	200	200	mm
- Alternative	400	400	400	400	400	mm
Ambient temperature	+10 to +35	+10 to +35	+10 to +35	+10 to +35	+10 to +35	°C
Air humidity	20 – 90	20 – 90	20 – 90	20 – 90	20 – 90	%
testControl II measurement and control electronics
Measurement range	≤165	≤165	≤165	≤165	≤165	%
Recording rate, internal	400	400	400	400	400	kHz
Measurement value transmission rate to PC	500	500	500	500	500	Hz
Adjustable (optional)	2000	2000	2000	2000	2000	Hz
Electrical connection
1 Ph/N/PE		230				V
3 Ph/N/PE	400		400	400	400	V
Power consumption, max.	5000	2200	5000	5000	5000	VA
Power frequency	50/60	50/60	50/60	50/60	50/60	Hz
Item No.
Standard piston stroke	1023367	1023370	1023373	1023378	1023380
Alternative piston stroke¹	1023368	1023371	1023374	1023379	1023381

Length and weight are different with alternative piston stroke

Model III	EZ050
Electromechanical servo testing actuators
Fmax (tensile/compression)	50	kN
Test speed	0,001...3000	mm/min
Travel resolution	1	nm
Positioning repetition accuracy	±8	μm
Permissible transverse force at maximum stroke	2000	N
Dimensions
Height with stroke	1475	mm
Width	430	mm
Depth	200	mm
Stroke	400	mm
Piston diameter	100	mm
Weight
Testing actuator	136	kg
Machine electronics	36	kg
L1 – Length	682	mm
L2 – Width	200	mm
L3 – Depth	430	mm
L4 – Length incl. piston rod	873	mm
L4 – Length incl. motor	550	mm
Overall weight, approx.	136	kg
Piston stroke, max.
- Standard	200	mm
- Alternative	400	mm
Mounting
To the head and foot flange	4 x M16	mm
To the piston rod flange	4 x M16	mm
Paint finish
Aluminum black	Anodized
Aluminum natural	Anodized
Red RAL	3031
Average noise level	<73	dB(A)
Speed	0.001 ... 3000	mm/min
Deviation from the set drive speed, max.	0.01 % of	v_actual
Drive travel resolution	0.00107	μm
Positioning repeatability without reversing directions
At 0.5 m/min	+/-1	μm
At 7 m/min	+/-8	μm
Front and back end positions	Automatic shutdown via limit switches
Humidity	20 ... 90	%
Ambient temperature	+10 ... +35	°C
testControl II measurement and control electronics
Measurement range	≤165	%
Recording rate, internal	400	kHz
Measurement value transmission rate to PC, adjustable	500 (optionally 2000)	Hz
Electrical connection	400	V, 3 Ph/N/PE
Power consumption, max.	6000	VA
Power frequency	50/60	Hz
Item No.
Standard piston stroke (200 mm)	1023382
Alternative piston stroke (400 mm)	1023383

Series IV	EZ100
Electromechanical servo testing actuator
Test load F_max in tensile/compression	100	kN
Permissible transverse force at maximum stroke	2500	N
Test speed v_max	25	mm/s
Travel resolution	0.615	nm
Position repetition accuracy with reversal of direction	± 0.014	μm
L1 – Length	950	mm
L2 – Width	296	mm
L3 – Depth	510	mm
L4 – Length incl. piston rod	1183	mm
L5 – Length incl. motor	573	mm
Overall weight, approx.	420	kg
Piston stroke, max.
- Standard	200	mm
- Alternative	400	mm
Ambient temperature	+10 to +35	°C
Air humidity	20 to 90	%
testControl II measurement and control electronics
Measurement range	≤165	%
Internal recording rate	400	kHz
Measurement value transmission rate to PC, adjustable	500 (optionally 2000)	Hz
Electrical connection	400	V, 3 Ph/N/PE
Power consumption, max.	5000	VA
Power frequency	50/60	Hz
Item No.
Standard piston stroke (200 mm)	1023385
Alternative piston stroke (400 mm)	3001085
