High-Temperature Testing Systems

Temperature range from -80°C to +2,000°C
Industries
  • Metals
  • Academia
  • Aerospace
  • Energy
Test load
  • 5 kN - 250 kN
Type of test
  • Tensile test
  • Compression test
  • Flexure test
  • Strain-rate controlled test
Applications
  • ISO 6892-2 A1
  • EN 2002-002
  • ASTM E21

The optimal solution for your universal testing at high temperature

ZwickRoell's high-temperature testing solutions are based on the proven load frame concept of the AllroundLine. The flexible and modular load frame design in conjunction with an array of high-temperature components enable the configuration of individual testing systems that are optimally matched to the testing requirements of our customers. ZwickRoell offers standard solutions in a temperature range of -80 °C up to +1,600 °C and customized testing solutions up to +2,000 °C.

  • A testing system for all quasi-static tests (tensile, compression and flexure tests)
  • Wide temperature range: -80 °C to +1,600 °C with high-temperature furnace and temperature chamber
    +200 °C to +2,000 °C with vacuum chamber
  • Precise measurement and standard-compliant specimen temperature control
  • Wide selection of contact-type and non-contact extensometers for all applications in the entire temperature range
  • Corresponding specimen grips for almost all materials (metals, plastics, composites, ...)
  • Wide range of high-temperature accessories for customized system configurations

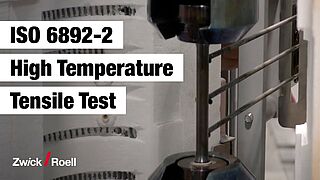

High-temperature application versatility

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system with side test area

AllroundLine testing machine Z250 SNS with side test area for ambient and high temperature tests without the need for time-consuming conversion efforts

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system with 3-furnace carousel

AllroundLine materials testing machine Z250 SH for tests at ambient and high temperatures and high specimen throughput, with three individually controllable furnaces and contact-type extensometers

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system with 4-furnace carousel

Customized high-temperature testing solution for different specimen dimensions and high specimen throughput, with four individually controllable furnaces and non-contact extensometer

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system with two furnaces and hot loading functionality

AllroundLine testing machine Z100 TEW with two furnaces and hot loading functionality for high-temperature tensile tests to ISO 6892-2 with high specimen throughput

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system for strain-controlled tensile tests

AllroundLine testing machine Z150 TL for strain-controlled high-temperature tensile tests to ISO 6892-2 Method A1 with non-contact extensometer

By playing this video, you agree to the use of cookies as well as to the transfer of data to YouTube in the USA. Additional data privacy notices.

High-temperature testing system with vacuum chamber

Customized high-temperature testing system for tensile, compression, flexure, creep fatigue and shear tests on ceramic matrix composites (CMC) at ultra-high temperatures up to +2,000°C in vacuum and inert gas environments.

Advantages and features of high-temperature testing systems

General
For similar specimens
For different specimens
For large specimens and test variety

General

All ZwickRoell high-temperature testing systems feature:

  • Standard-compliant specimen temperature control through a user-independent temperature controller
  • Precise force transmission with high-temperature resistant load strings
  • Exact measurement of specimen strain with non-contact or contact-type extensometers
  • Proven testControl II measurement and control electronics
  • testXpert testing software for reliable and traceable test results

For similar specimens

This testing system for similar specimen geometries and sizes is often used in quality control applications. The fixed specimen temperature measuring device not only enables easy operation, it also creates the foundation for reliable and repeatable test results.

  • Table-top testing machine with adjustable working height
  • Force range up to 150 kN
  • High-temperature furnace with fixed positioning in a temperature range
    of +200°C to +1,250°C
  • Specimen temperature measurement with fixed distance between the thermocouples for similar specimen geometries and sizes



For different specimens

This flexible testing system for different specimen sizes and geometries is often used by research institutes and universities, and allows flexure and compression tests to be performed in addition to tensile tests due to the variable specimen temperature measuring device.

  • Table-top testing machine with adjustable working height
  • Force range up to 150 kN
  • High-temperature furnace with height-adjustable positioning in a temperature range of +200°C to +1,250°C
  • Furnace swivel unit enables tests even at room temperature
  • Specimen temperature measurement with variable distance between thermocouples for various specimen geometries and sizes
  • Variable furnace openings for various mounting options for extensometers and specimen temperature measuring devices

For large specimens and test variety

This extremely flexible testing system will meet the strict requirements of testing service providers since it covers an expanded force range in addition to the wide array of specimens and tests.

  • Floor-standing testing machines with easy and quick adjustment of the working height
  • Wide force range up to 250 kN, second load cell for small force ranges can optionally be used
  • High-temperature furnace with height-adjustable positioning in a temperature range of +200°C to +1,250°C
  • Furnace swivel unit enables tests even at room temperature
  • Also available with a lateral work area to prevent the need for modifications and to allow easy switching between room and high-temperature tests
  • Specimen temperature measurement with variable distance between thermocouples for various specimen geometries and sizes
  • Variable furnace openings for various mounting options for extensometers and specimen temperature measuring devices

We will find the optimal testing solution for your high-temperature application. Please feel free to contact our experts.

We will be happy to discuss your needs.

Contact us

High-temperature testing systems for special requirements

ZwickRoell has many years of experience with project planning of customer-specific, high-temperature systems and specializes in complex requirements for high-temperature testing. Our engineers have the expertise necessary to configure the optimal system for your requirements based on our wide selection of system combinations and components.

Testing system for large temperature ranges

Testing system for large temperature ranges

Equipped with temperature chamber and furnace, you can perform tests in a temperature range of -80 to +1,200°C.
Testing system for high specimen throughput

Testing system for high specimen throughput

High specimen throughput can be achieved by using a furnace carousel with three to six stand-alone furnaces.
Testing system for quick heating and cooling

Testing system for quick heating and cooling

Testing solutions with induction heating feature quick heating and cooling of metals as well as non-metals.
Testing system for controlled environments and temperatures above 1,500°C

Testing system for controlled environments and temperatures above 1,500°C

Testing systems with vacuum or inert gas chamber enable the simulation of certain environmental conditions and tests over 1,500°C.

Suitable accessories

High Temperature Testing up to +2,000°C Accessories for AllroundLine materials testing machines
Temperature range
  • -80°C to +2,000°C
Components
  • Temperature chambers
  • Furnaces
  • Vacuum chambers
  • Induction heating
  • Temperature controller
  • Specimen temperature measuring device
  • Extensometers
  • Load strings
Advantages
  • Precise temperatures
  • Reliable strain measurement
  • Secure specimen gripping
To the product
laserXtens 2-120 HP/TZ The high-temperature specialist for all specimens
Max. measurement range
  • 60 mm
Temperature range
  • Ambient temperature
  • High temperature up to 2,000°C
Type of test + change in width
  • Tensile, compression, flexure tests
  • Change in width
  • Strain distribution
  • Test re-run
  • 2D dot matrix
Material
  • Metals
  • Refractory materials
  • Ceramics
  • Graphite
To the product
laserXtens 1-32 HP/TZ The high-temperature specialist for small specimens
Max. measurement range
  • 30 mm
Temperature range
  • Ambient temperature
  • High temperature up to 2,000°C
Type of test + change in width
  • Tensile, compression, flexure tests
  • Change in width
  • Strain distribution
  • Test re-run
  • 2D dot matrix
Material
  • Metals
  • Refractory materials
  • Ceramics
  • Graphite
To the product
testControl II electronics
Resolution
  • 24 bit
Data transmission rates
  • Up to 10 kHz
Sampling rate
  • 400 kHz
To the product
Load cells
Load range
  • 5 N - 2,500 kN (quasi-static)
  • 1 kN - 1,000kN (dynamic)
Accuracy class
  • ISO 7500-1
  • ASTM E4
To the product
Show more products Show less product

Interesting customer projects

Ultra-high temperature testing on CMC in vacuum conditions
High-temperature tensile test research
Industry:
Academia,  Automotive & e-mobility,  Aerospace
To the case study
Characterization of additively manufactured high-performance materials
Tensile test high-temperature research
Industry:
Aerospace,  Medical and Pharmaceutical,  Metals
To the case study
Taiyuan University of Technology (TYUT)
Tensile test high-temperature research
Industry:
Academia,  Metals
Country:
Germany
To the case study
Indian Institute of Technology Madras (IIT)
Industry:
Academia
Country:
India
To the case study
Chongqings Changan Automobile Company
Tensile test high-temperature research
Industry:
Automotive & e-mobility
Country:
China
To the case study
KS Kolbenschmidt GmbH
Tensile test high-temperature research
Industry:
Automotive & e-mobility
Country:
Germany
To the case study

More customers use ZwickRoell high-temperature testing systems

Politecnico di Torino develops novel composite materials up to +1,200°C with ZwickRoell high-temperature testing system

Politecnico di Torino, Italy

The renowned Italian University develops novel composite materials for use up to +1,200°C in the automotive, railroad, space and aerospace industries.
RWTH Aachen investigates process-optimized materials for Additive Manufacturing according to ISO 6892-1 and -2

RWTH Aachen Chair Digital Additive Production DAP, Germany

The Digital Additive Production chair investigates process-optimized materials for Additive Manufacturing according to ISO 6892-1 and -2 in only one test system.
